Thermoset Molding: High-Performance Solutions for Demanding Industrial Applications
What Are Thermoset Polymers?
Thermoset polymers—also known as thermosetting plastics—are engineered materials that undergo an irreversible chemical reaction when heated. Once cured, they form a rigid, cross-linked molecular structure that cannot be remelted or reshaped. This makes them ideal for applications requiring high thermal resistance, dimensional stability, and electrical insulation.
Unlike thermoplastics, which soften when reheated, thermosets retain their shape and properties even under extreme conditions. This distinction is critical in sectors such as aerospace, defense, automotive, and medical devices, where performance under stress is non-negotiable.
Thermoset Molding Processes: Injection, Compression & Transfer
Thermoset components are typically manufactured using three main molding techniques:

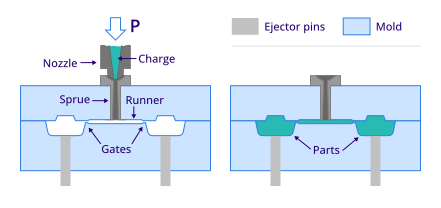

1. Injection Molding
In thermoset injection molding, a screw mechanism injects bulk molding compound (BMC) into a closed, heated mold. The material cures inside the mold, similar to how candle wax solidifies—except here, the process is irreversible. This method is suitable for high-volume production of complex parts with tight tolerances.

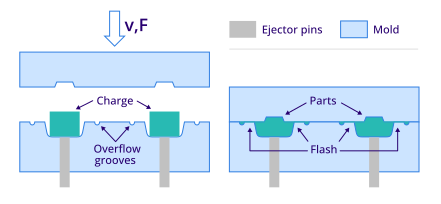

2. Compression Molding
Compression molding involves placing BMC directly into an open mold. The mold is then closed and heated, initiating the curing process. This technique is particularly effective for larger parts and offers excellent material utilization.

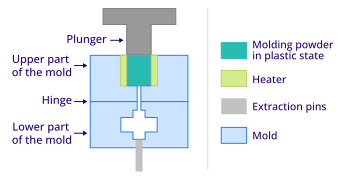

3. Transfer Molding
Transfer molding is a hybrid process. The thermoset material is loaded into a chamber (piston), and once the mold is closed, the piston forces the material into the mold cavity. This allows for better control of material flow and gas evacuation, reducing the risk of flash and improving surface finish.
Each method requires precise thermal control and longer cycle times compared to thermoplastics. Post-processing steps such as deflashing are often necessary due to gas release during curing.
Key Properties of Thermoset Materials
Thermosets offer a unique combination of properties that make them indispensable in high-performance environments:
- High thermal resistance: Suitable for combustion engines and aerospace components.
- Dimensional stability: Maintains shape under mechanical and thermal stress.
- Electrical insulation: Ideal for electronic connectors and housings.
- Chemical resistance: Withstands aggressive environments.
- Non-recyclable: Once cured, cannot be remelted—an important consideration for sustainability strategies.
Industrial Applications of Thermoset Molding
Thermoset molding continues to serve critical roles in industries where performance cannot be compromised:
Aerospace
Thermoset components are used in propeller engine systems and high-temperature zones. For example, molded connectors for aerospace engines require the thermal and electrical insulation that only thermosets can provide.
Defense
In missile propulsion systems, thermoset parts withstand extreme heat and mechanical stress. Their reliability under harsh conditions makes them suitable for mission-critical defense applications.
Automotive
Historically used in ashtrays and electrical components, thermosets remain relevant for parts exposed to high temperatures or requiring insulation. While some OEMs are transitioning to thermoplastics, thermosets still offer unmatched performance in specific use cases.
Medical & Electronics
Thermoset materials are used in diagnostic equipment housings and electronic connectors, where insulation and dimensional stability are essential.
Design Optimization and Engineering Support
Thermoset molding requires careful design consideration. DEMGY’s engineering teams actively challenge customer drawings to optimize tolerances and manufacturability. For small series and additive manufacturing, compatibility with metallization is evaluated based on material porosity and retention zones. Technologies like SLS (PEEK) and MJF (PA11) offer better results for metallization compared to filament extrusion.
Challenges and Future Outlook
While thermosets offer superior performance, they come with constraints:
- Longer cycle times due to curing
- Higher energy consumption
- Post-processing requirements like deflashing
- Limited recyclability
Despite these challenges, thermoset molding remains a strategic choice for industries where reliability, heat resistance, and insulation are paramount. As sustainability becomes a priority, research into recyclable thermoset formulations and alternative curing methods is gaining momentum.
Interested in high-performance thermoset solutions? Contact DEMGY’s technical team to discuss your project requirements.
